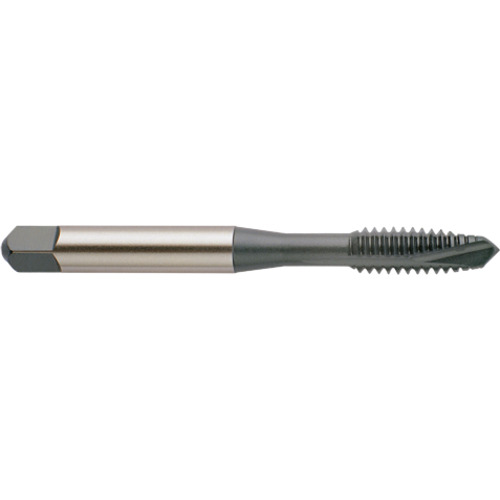

Spiral Point Tap; M3.5 × 0.6 mm ; 50.8 mm OAL ; 2 FL ; HSS-V ; Hardslick ; D4 ; Series L9
| Thread Standard | M | Tool Type | General Purpose |
| Thread Size | M3.5 × 0.6 mm | Connection Diameter Machine Side (DCONMS) | 3.58 mm |
| Thread Diameter Size (TDZ) | M3.5 | Thread Cutting Part Length (THL) | 10.49 mm |
| Thread Pitch (TP) | 0.6 mm | Tapping Prehole Diameter (Pre-hole) | 2.954 mm |
| Thread Tolerance Class (TCTR) | D4 | Flute Type | Spiral Point |
| Usable Length (LU) | 16.41 mm | End Shape | Plug |
| Overall Length (OAL) | 50.8 mm | Shank Type | Square |
| Chamfer | 4P-5P | Coolant Supply Property (CSP) | External |
| Coating | HL | Length Group | 3xD |
| Flute Count (NOF) | 2 | Square Size | 2.79 mm |
| Cutting Edge Material | HSS-V | Measurement Type | Metric |
| Standard | 302A | Series/List # | L9 |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
3.125
Package Width
0.5
Package Height
0.375
Package Weight
0.01135
