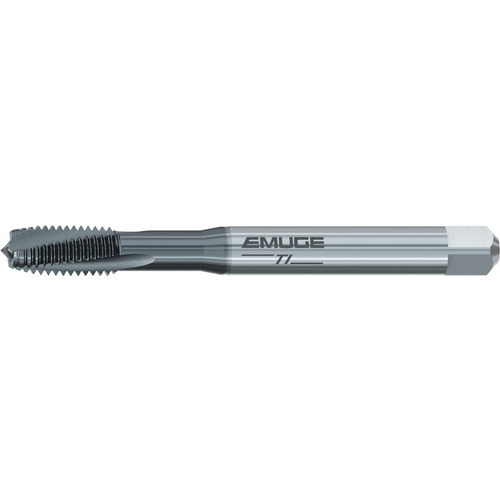

Spiral Flute Tap; #12 -24 × 2.205″ OAL ; HSSE ; TiCN ; UNC ; 3BX ; Series U309611
Spiral Flute Tap; #12 - 24 ; 2.205″ OAL ; HSSCo ; TiCN ; 3BX ; Series BU309611
| Thread Diameter Size (TDZ) | #12 | Tool Type | Rekord C-TI |
| Threads per Inch (TPI) | 24 | Chamfer | 4P-5P |
| Thread Standard | UNC | Coating | TiCN |
| Overall Length (OAL) | 2.205″ | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 0.141″ | Cutting Direction (HAND) | Left Hand |
| Flute Helix Angle (FHA) | 15 Degrees | Coolant Supply Property (CSP) | External |
| Applicable Material | | Super-Alloys / Titanium | | Measurement Type | Wire Gauge |
| Cutting Edge Material | HSSCo | Series/List # | BU309611 |
| Thread Tolerance Class (TCTR) | 3BX | Application | Blind Hole |
| Standard | DIN | ANSI |
Product Features
| Remarks | • Rekord C-TI is a left hand spiral tap designed for titanium alloys and high tensile strength materials. • Longer tool life and more consistent thread quality. • Best suited for through hole applications. | Country of Origin | Germany |
Shipping Info
Package Weight
0.026
