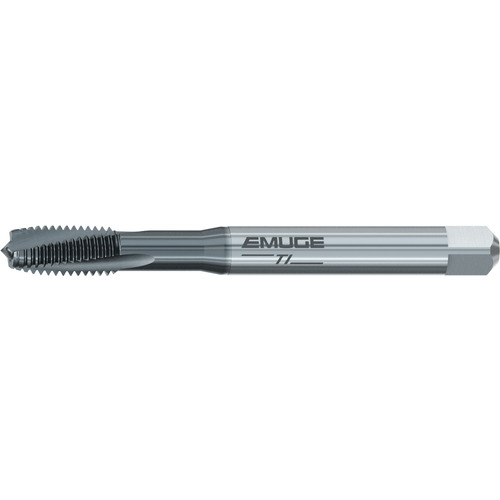

Spiral Flute Tap; 3/8″ -16 × 3.937″ OAL ; HSSE ; TiCN ; UNC ; BT ; Series U309600
Spiral Flute Tap; 3/8″ - 16 ; 3.937″ OAL ; HSSE ; TiCN ; BT ; Series BU309600
| Thread Diameter Size (TDZ) | 3/8″ | Standard | DIN | ANSI |
| Threads per Inch (TPI) | 16 | Tool Type | Rekord C-TI |
| Thread Standard | UNC | Chamfer | 3.5P-5P |
| Overall Length (OAL) | 3.937″ | Coating | TiCN |
| Usable Length (LU) | 39 mm | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 0.381″ | Cutting Direction (HAND) | Left Hand |
| Flute Helix Angle (FHA) | 15 Degrees | Coolant Supply Property (CSP) | External |
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Measurement Type | Inch |
| Cutting Edge Material | HSSCo | Series/List # | BU309600 |
| Thread Tolerance Class (TCTR) | BT | Application | Blind Hole |
Product Features
| Remarks | • Rekord C-TI is a left hand spiral tap designed for titanium alloys and high tensile strength materials. • Longer tool life and more consistent thread quality. • Best suited for through hole applications. | Country of Origin | Germany |
Shipping Info
Package Weight
0.095
