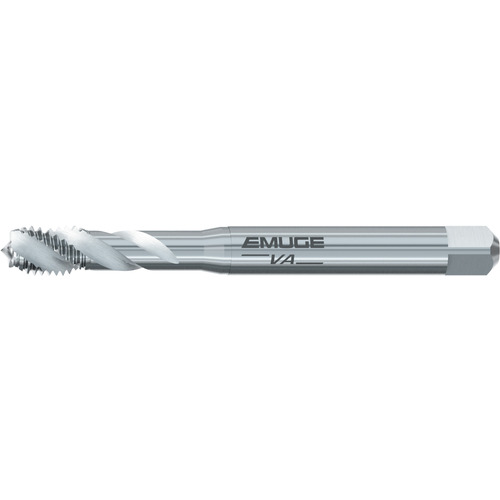

Spiral Flute Tap; M4 × 0.7 mm × 63 mm OAL ; HSSE ; Bright ; Metric ; 6G ; Series 503020
Spiral Flute Tap; M4 × 0.7 mm ; 63 mm OAL ; HSSE ; Uncoated ; 6G ; Series 503020
| Thread Diameter Size (TDZ) | M4 | Tool Type | Rekord B-VA |
| Thread Pitch (TP) | 0.7 mm | Chamfer | 2P-3P |
| Thread Standard | Metric | Coating | Uncoated |
| Overall Length (OAL) | 63 mm | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 4.5 mm | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 35 Degrees | Coolant Supply Property (CSP) | External |
| Applicable Material | | Steel | Stainless Steel | | Measurement Type | Metric |
| Cutting Edge Material | HSSE | Series/List # | B0503020 |
| Thread Tolerance Class (TCTR) | 6G | Application | Blind Hole |
| Standard | DIN |
Product Features
| Remarks | • Rekord B-VA design is typically for through hole applications in stainless steel and steel alloys. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
0.0132
