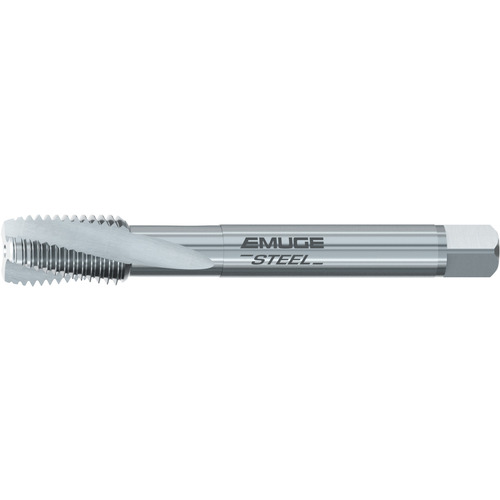

Spiral Flute Tap; 1/4″ -32 × 80 mm OAL ; 3 FL ; HSSE ; Bright ; UNEF ; 2B ; Series 461000
Spiral Flute Tap; 1/4″ - 32 ; 80 mm OAL ; 3 FL ; HSSE ; Uncoated ; 2B ; Series 461000
| Thread Diameter Size (TDZ) | 1/4″ | Standard | DIN |
| Threads per Inch (TPI) | 32 | Tool Type | Rekord D-Steel |
| Thread Standard | UNEF | Chamfer | 1.5P-2P |
| Overall Length (OAL) | 80 mm | Coating | Uncoated |
| Usable Length (LU) | 1/2″ | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 0.177″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 15 Degrees | Measurement Type | Inch |
| Applicable Material | | Steel | | Series/List # | C0461000 |
| Cutting Edge Material | HSSCo | Application | Blind Hole |
| Thread Tolerance Class (TCTR) | 2B |
Product Features
| Remarks | • Rekord D-Steel / E tap is a slow spiral design for blind holes, especially automatic lathes and multi-spindle machines. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
0.0198
