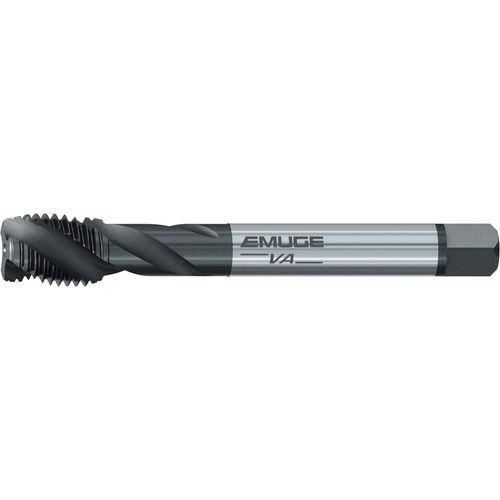

Spiral Flute Tap; 2-1/2″ -8 × 10.827″ OAL ; 8 FL ; HSSE ; NE2 ; UN ; 2B ; Series U503200
Spiral Flute Tap; 2-1/2″ - 8 ; 10.827″ OAL ; 8 FL ; HSSE ; 2B ; Series U503200

| Thread Diameter Size (TDZ) | 2-1/2″ | Standard | DIN | ANSI |
| Threads per Inch (TPI) | 8 | Tool Type | Enorm VA |
| Thread Standard | UN | Chamfer | 2P-3P |
| Overall Length (OAL) | 10.827″ | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 2.1″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 8 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 35 Degrees | Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | | Series/List # | CU503200 |
| Cutting Edge Material | HSSE | Application | Blind Hole |
| Thread Tolerance Class (TCTR) | 2B |
Product Features
| Remarks | • The Enorm VA design is typically for blind hole threads in long chipping materials.
• Longer tool life and more consistent thread quality.
• The fast spiral flute (35°) provides good chip removal from blind holes. | Country of Origin | Germany |
Shipping Info
Package Weight
9.8934
