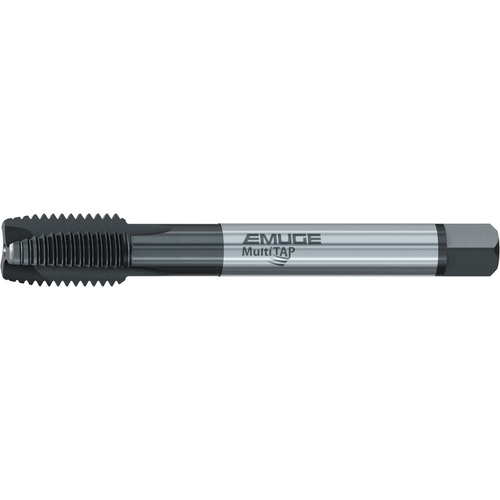

Spiral Flute Tap; 1″ -8 × 6.299″ OAL ; 3 FL ; HSSE ; TiCN ; UNC ; 3BX ; Series U459611
Spiral Flute Tap; 1″ - 8 ; 6.299″ OAL ; 3 FL ; HSSE ; TiCN ; 3BX ; Series U459611
| Thread Diameter Size (TDZ) | 1″ | Standard | DIN | ANSI |
| Threads per Inch (TPI) | 8 | Tool Type | Rekord D-TI |
| Thread Standard | UNC | Chamfer | 2P-3P |
| Overall Length (OAL) | 6.299″ | Coating | TiCN |
| Connection Diameter Machine Side (DCONMS) | 0.8″ | Flute Type | Spiral |
| Flute Count (NOF) | 3 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 15 Degrees | Coolant Supply Property (CSP) | External |
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Measurement Type | Inch |
| Cutting Edge Material | HSSCo | Series/List # | CU459611 |
| Thread Tolerance Class (TCTR) | 3BX | Application | Blind Hole |
Product Features
| Remarks | • Rekord D-TI tap is a slow spiral design for blind holes, especially automatic lathes and multi-spindle machines. • Best suited for titanium and high tensile strength materials. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
0.8096
