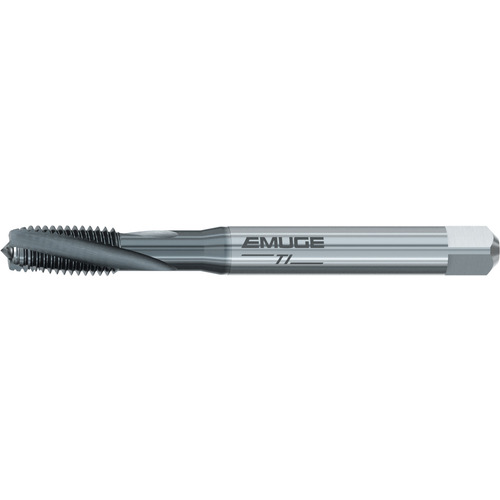

Spiral Flute Tap; 4″ -40 × 2.205″ OAL ; HSSE ; TiCN ; UNC ; BT ; Series U459600
Spiral Flute Tap; 4″ - 40 ; 2.205″ OAL ; HSSE ; TiCN ; BT ; Series U459600
| Thread Diameter Size (TDZ) | #4 | Standard | DIN | ANSI |
| Threads per Inch (TPI) | 40 | Tool Type | Rekord D-TI |
| Thread Standard | UNC | Chamfer | 2P-3P |
| Overall Length (OAL) | 2.205″ | Coating | TiCN |
| Usable Length (LU) | 18 mm | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 0.141″ | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 15 Degrees | Coolant Supply Property (CSP) | External |
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Measurement Type | Inch |
| Cutting Edge Material | HSSCo | Series/List # | BU459600 |
| Thread Tolerance Class (TCTR) | BT | Application | Blind Hole |
Product Features
| Remarks | • Rekord D-TI tap is a slow spiral design for blind holes, especially automatic lathes and multi-spindle machines. • Best suited for titanium and high tensile strength materials. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
0.0044
