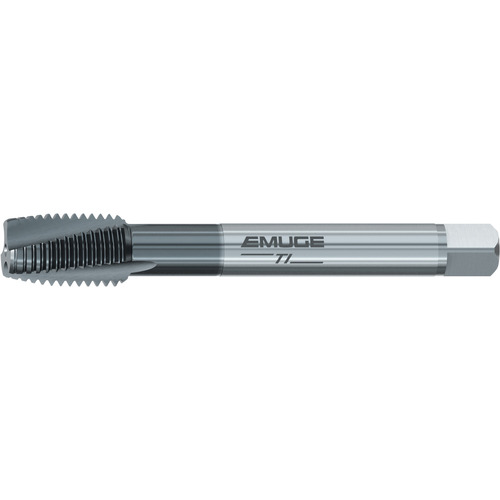

Spiral Flute Tap; 7/8″ -14 × 4.921″ OAL ; 4 FL ; HSSE ; TiCN ; UNF ; 3BX ; Series U309611
Spiral Flute Tap; 7/8″ - 14 ; 4.921″ OAL ; 4 FL ; HSSE ; TiCN ; 3BX ; Series U309611
| Thread Diameter Size (TDZ) | 7/8″ | Standard | DIN | ANSI |
| Threads per Inch (TPI) | 14 | Tool Type | Rekord C-TI |
| Thread Standard | UNF | Chamfer | 3.5P-5P |
| Overall Length (OAL) | 4.921″ | Coating | TiCN |
| Connection Diameter Machine Side (DCONMS) | 0.697″ | Flute Type | Spiral |
| Flute Count (NOF) | 4 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 15 Degrees | Coolant Supply Property (CSP) | External |
| Applicable Material | | Super-Alloys / Titanium | | Measurement Type | Inch |
| Cutting Edge Material | HSSCo | Series/List # | CU309611 |
| Thread Tolerance Class (TCTR) | 3BX | Application | Blind Hole |
Product Features
| Remarks | • Rekord C-TI is a left hand spiral tap designed for titanium alloys and high tensile strength materials. • Longer tool life and more consistent thread quality. • Best suited for through hole applications. | Country of Origin | Germany |
Shipping Info
Package Weight
0.4906
