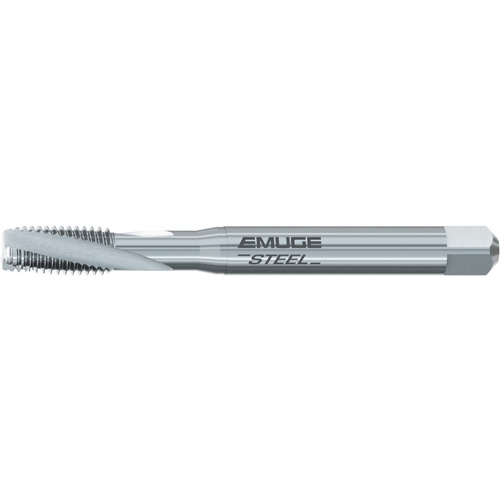

Spiral Flute Tap; M10 × 1.5 mm × 100 mm OAL ; 3 FL ; HSSE ; Bright ; Metric ; 6H ; Series 461000
Spiral Flute Tap; M10 × 1.5 mm ; 100 mm OAL ; 3 FL ; HSSE ; Uncoated ; 6H ; Series 461000
| Thread Diameter Size (TDZ) | M10 | Thread Tolerance Class (TCTR) | | 6H | D5 | |
| Thread Pitch (TP) | 1.5 mm | Standard | DIN |
| Thread Standard | Metric | Tool Type | Rekord D-Steel |
| Overall Length (OAL) | 100 mm | Chamfer | 2P-3P |
| Usable Length (LU) | 20 mm | Coating | Uncoated |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Flute Type | Spiral |
| Flute Count (NOF) | 3 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 15 Degrees | Coolant Supply Property (CSP) | External |
| Applicable Material | | Steel | | Measurement Type | Metric |
| Cutting Edge Material | HSSCo | Series/List # | B0461000 |
Product Features
| Remarks | • Rekord D-Steel / E tap is a slow spiral design for blind holes, especially automatic lathes and multi-spindle machines. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
0.1078
