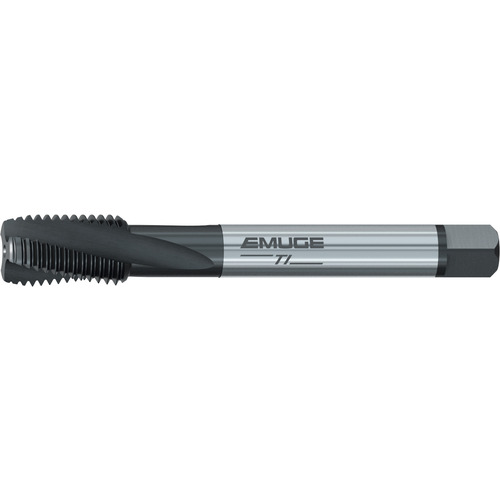

Spiral Flute Tap; 1-5/8″ -8 ; 4 FL ; HSSE ; Nitride ; UN ; 3BX ; Series U456011
Spiral Flute Tap; 1-5/8″ - 8 ; 4 FL ; HSSE ; 3BX ; Series U456011
| Thread Diameter Size (TDZ) | 1-5/8″ | Tool Type | Rekord D-TI |
| Threads per Inch (TPI) | 8 | Chamfer | 2P-3P |
| Thread Standard | UN | Flute Type | Spiral |
| Flute Count (NOF) | 4 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 15 Degrees | Coolant Supply Property (CSP) | External |
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Measurement Type | Inch |
| Cutting Edge Material | HSSCo | Series/List # | CU456011 |
| Thread Tolerance Class (TCTR) | 3BX | Application | Blind Hole |
| Standard | DIN | ANSI |
Product Features
| Remarks | • Rekord D-TI tap is a slow spiral design for blind holes, especially automatic lathes and multi-spindle machines. • Best suited for titanium and high tensile strength materials. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
3.1042
