5/16-24-Z-BOTT-GLT1-3B CL

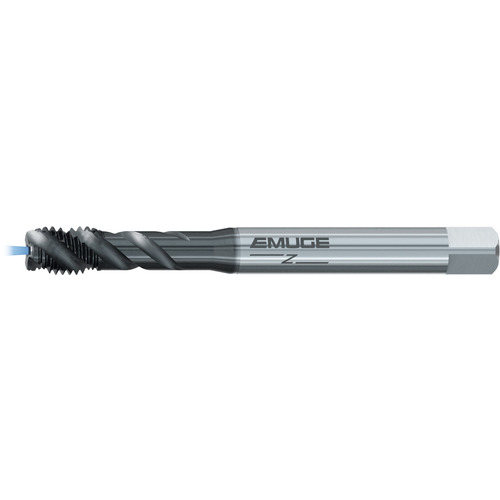

Spiral Flute Tap; 5/16″ - 24 ; 3.543″ OAL ; HSSE ; TiAlN ; 3B ; Series BU99C410
| Thread Diameter Size (TDZ) | 5/16″ | Standard | DIN | ANSI |
| Threads per Inch (TPI) | 24 | Tool Type | Enorm Z |
| Thread Standard | UNF | Chamfer | 1.5P-2P |
| Overall Length (OAL) | 3.543″ | Coating | TiAlN |
| Connection Diameter Machine Side (DCONMS) | 0.318″ | Flute Type | Spiral |
| Flute Helix Angle (FHA) | 45 Degrees | Cutting Direction (HAND) | Right Hand |
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Edge Material | HSSCo | Series/List # | BU99C410 |
| Thread Tolerance Class (TCTR) | 3B | Application | Blind Hole |
Product Features
| Remarks | • The Enorm Z design is typically for blind hole threads in long chipping materials. • Longer tool life and more consistent thread quality. • The fast spiral flute (45°) provides good chip removal from blind holes. | Country of Origin | Germany |
Shipping Info
Package Weight
0.026
