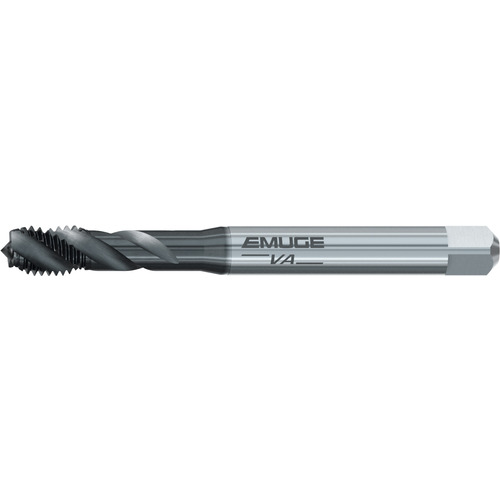

Spiral Flute Tap; #6 -40 × 2.205″ OAL ; HSSE ; GLT-1 ; UNF ; GH7
Spiral Flute Tap; #6 - 40 ; 2.205″ OAL ; HSSE ; TiAlN ; GH7
| Thread Diameter Size (TDZ) | #6 | Standard | DIN | ANSI |
| Threads per Inch (TPI) | 40 | Tool Type | Enorm VA |
| Thread Standard | UNF | Chamfer | 2P-3P |
| Overall Length (OAL) | 2.205″ | Coating | TiAlN |
| Usable Length (LU) | 0.787″ | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 0.141″ | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 35 Degrees | Coolant Supply Property (CSP) | External |
| Applicable Material | | Steel | Stainless Steel | | Series/List # | BU50C343 |
| Cutting Edge Material | HSSCo | Application | Blind Hole |
| Thread Tolerance Class (TCTR) | H7 |
Product Features
| Remarks | • The Enorm VA design is typically for blind hole threads in long chipping materials. • Longer tool life and more consistent thread quality. • The fast spiral flute (35°) provides good chip removal from blind holes. | Country of Origin | Germany |
Shipping Info
Package Weight
0.006
