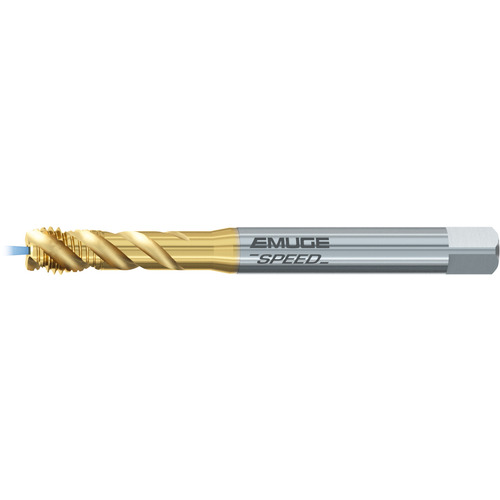

Spiral Flute Tap; M8 × 1.25 mm × 90 mm OAL ; HSSE-PM ; TiN ; Metric ; 6HX
Spiral Flute Tap; M8 × 1.25 mm ; 90 mm OAL ; HSSE-PM ; TiN ; 6HX

| Thread Diameter Size (TDZ) | M8 | Standard | DIN |
| Thread Pitch (TP) | 1.25 mm | Tool Type | Rekord B-Speed |
| Thread Standard | Metric | Chamfer | 2P-3P |
| Overall Length (OAL) | 90 mm | Coating | TiN |
| Usable Length (LU) | 24 mm | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 45 Degrees | Coolant Supply Property (CSP) | Coolant Thru |
| Applicable Material | | Steel | Stainless Steel | | Series/List # | B3650F01 |
| Cutting Edge Material | HSS-PM | Application | Blind Hole |
| Thread Tolerance Class (TCTR) | 6HX |
Product Features
| Remarks | • Speed taps are able to operate at higher cutting speeds than conventional designs.
• Longer tool life and more consistent thread quality.
• Speed Taps reduce threading cycle times. | Country of Origin | Germany |
Shipping Info
Package Weight
0.2
