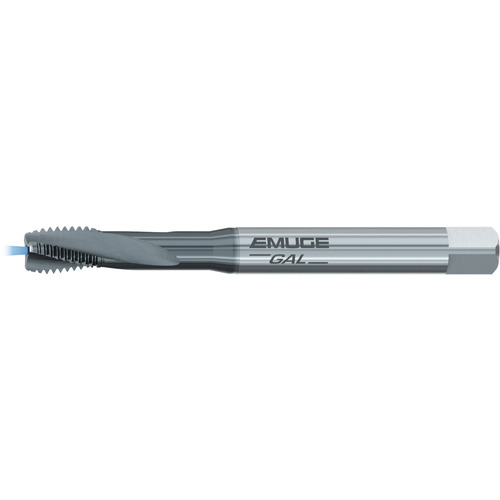

Spiral Flute Tap; M6 × 1 mm × 80 mm OAL ; HSSE ; TiCN ; Metric ; 6HX
Spiral Flute Tap; M6 × 1 mm ; 80 mm OAL ; HSSE ; TiCN ; 6HX ; Series B0989501
| Thread Diameter Size (TDZ) | M6 | Standard | DIN |
| Thread Pitch (TP) | 1 mm | Tool Type | Rekord D-GAL/E |
| Thread Standard | Metric | Chamfer | 1.5P-2P |
| Overall Length (OAL) | 80 mm | Coating | TiCN |
| Usable Length (LU) | 30 mm | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 15 Degrees | Coolant Supply Property (CSP) | Coolant Thru |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Series/List # | B0989501 |
| Cutting Edge Material | HSSCo | Application | Blind Hole |
| Thread Tolerance Class (TCTR) | 6HX |
Product Features
| Remarks | • Rekord D-GAL/E tap is a slow spiral design for blind holes, especially automatic lathes and multi-spindle machines. Best suited for cast aluminum alloys. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
0.03
