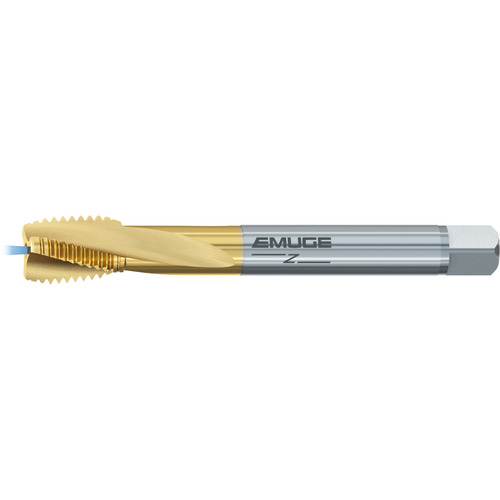

Spiral Flute Tap; M16 × 1.5 mm × 100 mm OAL ; HSSE ; TiN ; Metric ; 6HX
Spiral Flute Tap; M16 × 1.5 mm ; 100 mm OAL ; HSSE ; TiN ; 6HX
| Thread Diameter Size (TDZ) | M16 | Standard | DIN |
| Thread Pitch (TP) | 1.5 mm | Tool Type | Rekord D-Z |
| Thread Standard | Metric | Chamfer | 2P-3P |
| Overall Length (OAL) | 100 mm | Coating | TiN |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Flute Type | Spiral |
| Flute Helix Angle (FHA) | 15 Degrees | Cutting Direction (HAND) | Right Hand |
| Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Edge Material | HSSCo | Series/List # | C0963701 |
| Thread Tolerance Class (TCTR) | | 6H | D6 | | Application | Blind Hole |
Product Features
| Remarks | • Rekord D-Z tap is a slow spiral design for blind holes, especially automatic lathes and multi-spindle machines. • Designed with internal coolant supply, this tap type will help to solve chip problems on CNC machines. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
0.2
