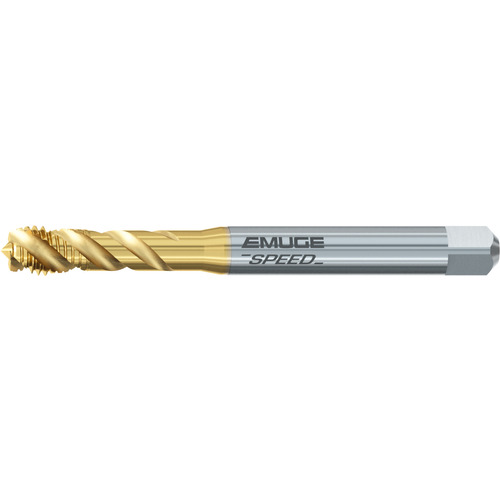

Spiral Flute Tap; M10 × 1.5 mm × 100 mm OAL ; HSSE-PM ; TiN ; Metric ; 6HX
Spiral Flute Tap; M10 × 1.5 mm ; 100 mm OAL ; HSSE-PM ; TiN ; 6HX
| Thread Diameter Size (TDZ) | M10 | Standard | DIN |
| Thread Pitch (TP) | 1.5 mm | Tool Type | Enorm |
| Thread Standard | Metric | Chamfer | 2P-3P |
| Overall Length (OAL) | 100 mm | Coating | TiN |
| Usable Length (LU) | 30 mm | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 45 Degrees | Coolant Supply Property (CSP) | External |
| Applicable Material | | Steel | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Series/List # | B3600F01 |
| Cutting Edge Material | HSS-PM | Application | Blind Hole |
| Thread Tolerance Class (TCTR) | 6HX |
Product Features
| Remarks | • Speed taps are able to operate at higher cutting speeds than conventional designs. • Longer tool life and more consistent thread quality. • Speed Taps reduce threading cycle times. | Country of Origin | Germany |
Shipping Info
Package Weight
0.2
