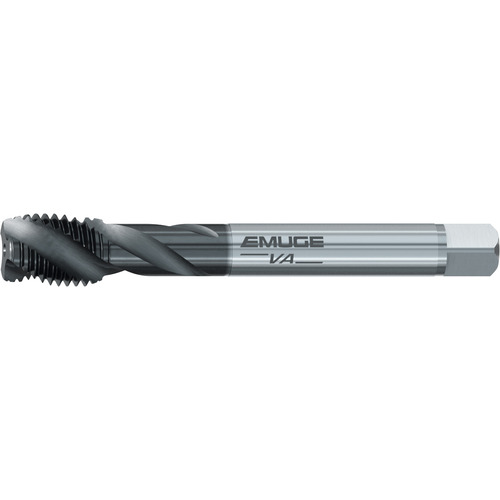

Spiral Flute Tap; 9/16″ -18 × 3.937″ OAL ; HSSE ; GLT-1 ; UNF ; 3B
Spiral Flute Tap; 9/16″ - 18 ; 3.937″ OAL ; HSSE ; TiAlN ; 3B ; Series CU50C310
| Thread Diameter Size (TDZ) | 9/16″ | Standard | DIN | ANSI |
| Threads per Inch (TPI) | 18 | Tool Type | Enorm VA |
| Thread Standard | UNF | Chamfer | 2P-3P |
| Overall Length (OAL) | 3.937″ | Coating | TiAlN |
| Connection Diameter Machine Side (DCONMS) | 0.429″ | Flute Type | Spiral |
| Flute Helix Angle (FHA) | 35 Degrees | Cutting Direction (HAND) | Right Hand |
| Applicable Material | | Steel | Stainless Steel | | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSSCo | Series/List # | CU50C310 |
| Thread Tolerance Class (TCTR) | 3B | Application | Blind Hole |
Product Features
| Remarks | • The Enorm VA design is typically for blind hole threads in long chipping materials. • Longer tool life and more consistent thread quality. • The fast spiral flute (35°) provides good chip removal from blind holes. | Country of Origin | Germany |
Shipping Info
Package Weight
0.149
