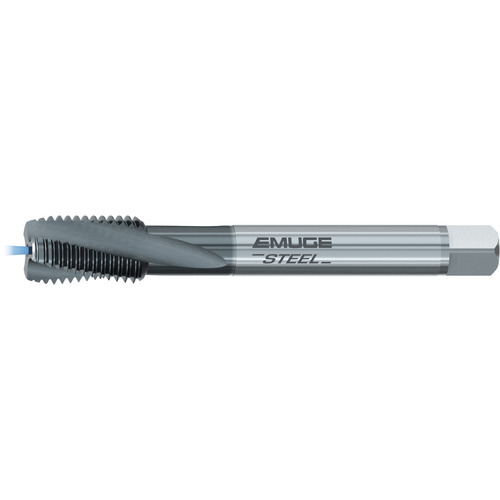

Spiral Flute Tap; 7/16″ -20 × 3.937″ OAL ; HSSE ; TiCN ; UNF ; 2BX
Spiral Flute Tap; 7/16″ - 20 ; 3.937″ OAL ; HSSE ; TiCN ; 2BX
| Thread Diameter Size (TDZ) | 7/16″ | Standard | DIN | ANSI |
| Threads per Inch (TPI) | 20 | Tool Type | Rekord D-Z |
| Thread Standard | UNF | Chamfer | 2P-3P |
| Overall Length (OAL) | 3.937″ | Coating | TiCN |
| Usable Length (LU) | 1-5/16″ | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 0.323″ | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 15 Degrees | Coolant Supply Property (CSP) | Coolant Thru |
| Applicable Material | | Steel | | Series/List # | CU979000 |
| Cutting Edge Material | HSSCo | Application | Blind Hole |
| Thread Tolerance Class (TCTR) | 2BX |
Product Features
| Remarks | • Rekord D-VA tap is a slow spiral design for blind holes, especially automatic lathes and multi-spindle machines. • Best suited for stainless steel, steel alloys & cast aluminum. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
0.083
