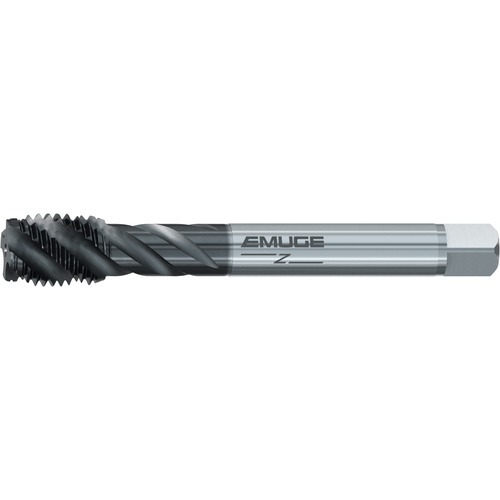

Spiral Flute Tap; 2″ -8 × 8.858″ OAL ; HSSE ; GLT-1 ; UN ; 2B
Spiral Flute Tap; 2″ - 8 ; 8.858″ OAL ; HSSE ; TiAlN ; 2B
| Thread Diameter Size (TDZ) | 1″ | Standard | DIN | ANSI |
| Threads per Inch (TPI) | 8 | Tool Type | Enorm Z |
| Thread Standard | UN | Chamfer | 2P-3P |
| Overall Length (OAL) | 8.858″ | Coating | TiAlN |
| Usable Length (LU) | 6″ | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 1.644″ | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 45 Degrees | Coolant Supply Property (CSP) | External |
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Series/List # | CU50C400 |
| Cutting Edge Material | HSSCo | Application | Blind Hole |
| Thread Tolerance Class (TCTR) | 2B |
Product Features
| Remarks | • The Enorm Z design is typically for blind hole threads in long chipping materials. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
4.895
