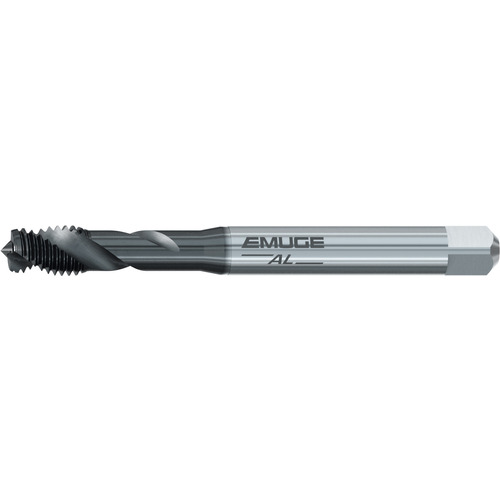

Spiral Flute Tap; #10 -32 × 2.756″ OAL ; HSSE ; GLT-8 ; UNF ; GH7
Spiral Flute Tap; #10 -32 × 2.756″ OAL ; HSSE ; GLT-8 ; | UNF | ; | GH7 |

| Thread Diameter Size (TDZ) | #10 | Standard | DIN | ANSI |
| Threads per Inch (TPI) | 32 | Tool Type | Enorm AL |
| Thread Standard | UNF | Chamfer | 2P-3P |
| Overall Length (OAL) | 2.756″ | Coating | GLT-8 |
| Connection Diameter Machine Side (DCONMS) | 0.194″ | Flute Type | Spiral |
| Flute Helix Angle (FHA) | 45 Degrees | Cutting Direction (HAND) | Right Hand |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSSE | Application | Blind Hole |
| Thread Tolerance Class (TCTR) | GH7 |
Product Features
| Remarks | • The Enorm AL design is typically for blind hole threads in long chipping aluminum alloys.
• Longer tool life and more consistent thread quality.
• The fast spiral flute (45°) provides good chip removal from blind holes. | Country of Origin | Germany |
Shipping Info
Package Weight
0.033
