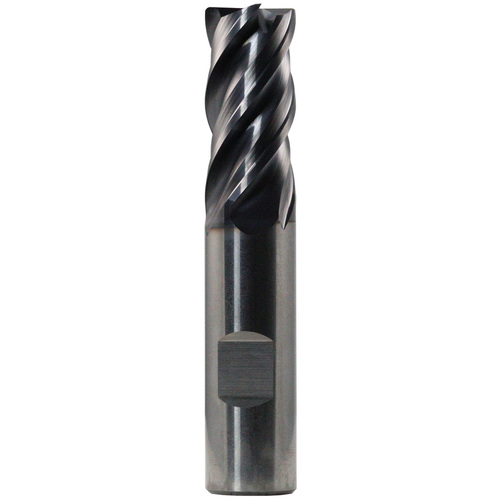

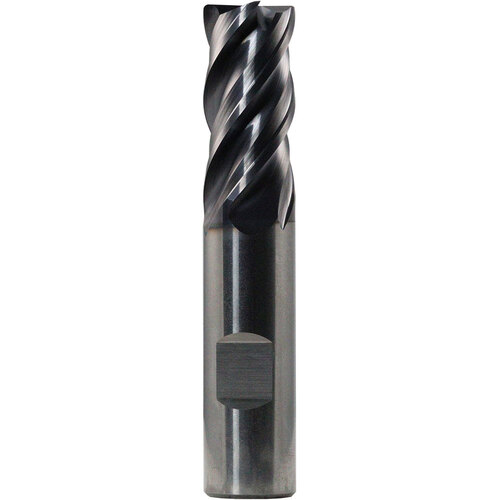

16.0 End Mill 4FL 1.00R TA - Z-CARB HTA 16x16x22x82
SQ End Mill; 16 mm Dia. × 22 mm LOC × 16 mm Shank Dia. × 82 mm OAL ; 4 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 16 mm | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Usable Length (LU) | 60 mm |
| Depth of Cut Maximum (APMX) | 22 mm | Corner Radius (RE) | 1 mm |
| Overall Length (OAL) | 82 mm | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | AlTiN | Decimal Equivalent | 0.6299″ |
| Flute Count (NOF) | 4 | Measurement Type | Metric |
| Shank Type | Round |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.54
