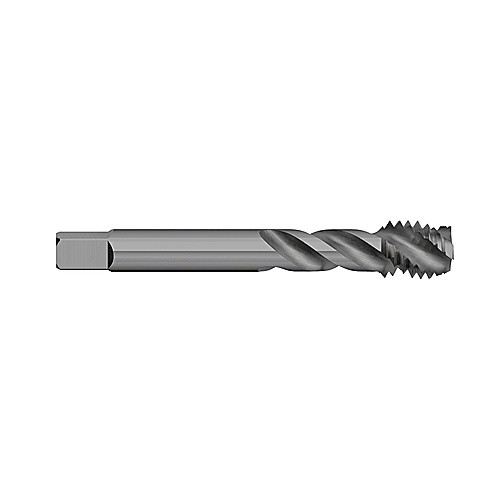

TT97557 3/8-24 H3 3F SP/F
Spiral Flute Tap; 3/8″ - 24 ; 2-15/16″ OAL ; 3 FL ; HSS ; Black Oxide ; H3
| Thread Diameter Size (TDZ) | 3/8″ | Cutting Length | 1/2″ |
| Threads per Inch (TPI) | 24 | Cutting Edge Material | HSS |
| Thread Standard | UN | Thread Tolerance Class (TCTR) | H3 |
| Overall Length (OAL) | 2-15/16″ | Standard | ANSI |
| Thread Cutting Part Length (THL) | 1/2″ | Tool Type | High Performance Tap |
| Usable Length (LU) | 1/2″ | Chamfer | Semi-Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.381″ | Coating | Black Oxide |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 45 Degrees |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.450
