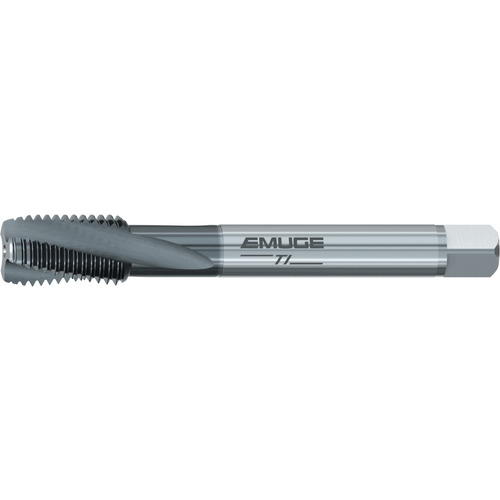

Spiral Flute Tap; M24 × 3 mm × 160 mm OAL ; HSSE ; TiCN ; Metric ; 6HX
| Thread Diameter Size (TDZ) | M24 | Tool Type | Rekord D-TI |
| Thread Pitch (TP) | 3 mm | Chamfer | 2P-3P |
| Thread Standard | Metric | Coating | TiCN |
| Overall Length (OAL) | 160 mm | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 18 mm | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 15 Degrees | Coolant Supply Property (CSP) | External |
| Applicable Material | | Super-Alloys / Titanium | | ToolTypeName | Spiral Flute Taps |
| Cutting Edge Material | HSSE | Series/List # | C0459601 |
| Thread Tolerance Class (TCTR) | 6HX | Application | Blind Hole |
| Standard | DIN |
Product Features
| Remarks | • Rekord D-TI tap is a slow spiral design for blind holes, especially automatic lathes and multi-spindle machines. • Best suited for titanium and high tensile strength materials. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
