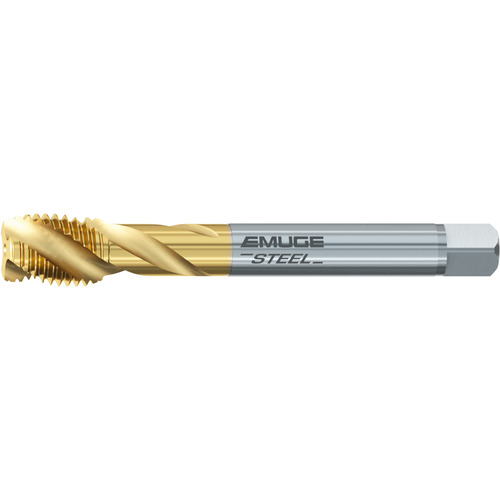

Spiral Flute Tap; M12 × 1 mm × 100 mm OAL ; HSSE ; GLT-1 ; Metric ; 6H
Spiral Flute Tap; M12 × 1 mm ; 100 mm OAL ; HSSE ; TiAlN ; 6H
| Thread Diameter Size (TDZ) | M12 | Tool Type | Enorm |
| Thread Pitch (TP) | 1 mm | Chamfer | 2P-3P |
| Thread Standard | Metric | Coating | TiAlN |
| Overall Length (OAL) | 100 mm | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 9 mm | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 45 Degrees | Coolant Supply Property (CSP) | External |
| Applicable Material | | Steel | Stainless Steel | | ToolTypeName | Spiral Flute Taps |
| Cutting Edge Material | HSSE | Series/List # | C0501400 |
| Thread Tolerance Class (TCTR) | 6H | Application | Blind Hole |
| Standard | DIN | ANSI |
Product Features
| Remarks | • The Enorm design is typically for blind hole threads in long chipping materials. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
.999
