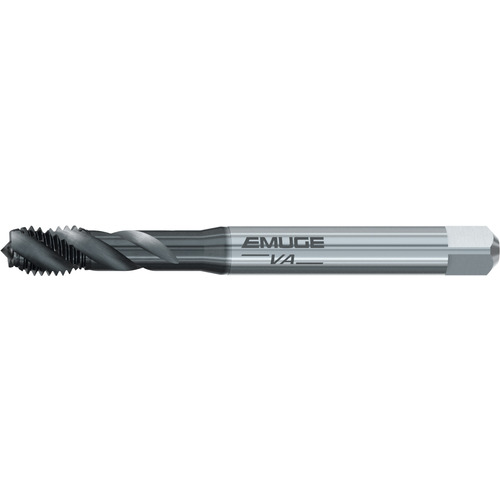

Spiral Flute Tap; M6 × 1 mm × 80 mm OAL ; HSSE ; GLT-1 ; Metric ; 6H
Spiral Flute Tap; M6 × 1 mm ; 80 mm OAL ; HSSE ; TiAlN ; 6H ; Series B050C300
| Thread Diameter Size (TDZ) | M6 | Tool Type | Enorm VA |
| Thread Pitch (TP) | 1 mm | Chamfer | 2P-3P |
| Thread Standard | Metric | Coating | TiAlN |
| Overall Length (OAL) | 80 mm | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 35 Degrees | Coolant Supply Property (CSP) | External |
| Applicable Material | | Steel | Stainless Steel | | ToolTypeName | Spiral Flute Taps |
| Cutting Edge Material | HSSE | Series/List # | B050C300 |
| Thread Tolerance Class (TCTR) | 6H | Application | Blind Hole |
| Standard | DIN |
Product Features
| Remarks | • The Enorm VA design is typically for blind hole threads in long chipping materials. • Longer tool life and more consistent thread quality. • The fast spiral flute (35°) provides good chip removal from blind holes. | Country of Origin | Germany |
Shipping Info
Package Weight
0.999
