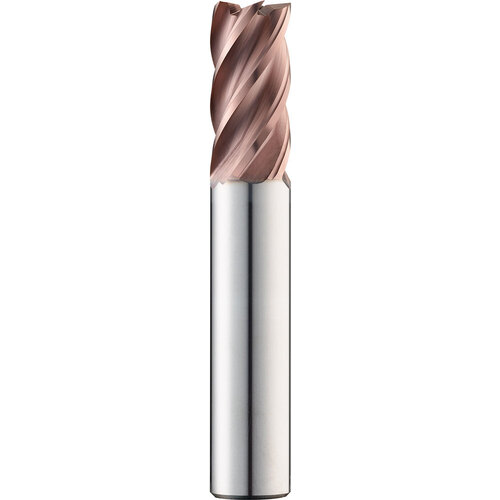

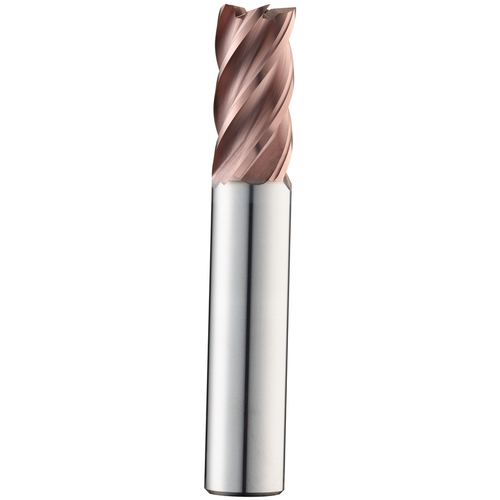

7/16 End Mill 5FL SQ TM - Z-CARB HPR 7/16x7/16x7/8x2-3/4
SQ End Mill; 7/16″ Dia. × 7/8″ LOC × 7/16″ Shank Dia. × 2-3/4″ OAL ; 5 FL ; Carbide ; TiSiN ; Series Z-CARB HPR
| Cutting Diameter (DC) | 7/16″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 7/16″ | Usable Length (LU) | 1-7/8″ |
| Depth of Cut Maximum (APMX) | 7/8″ | Corner Radius (RE) | 0″ |
| Overall Length (OAL) | 2-3/4″ | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | TiSiN | Decimal Equivalent | 0.4375″ |
| Flute Count (NOF) | 5 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 37 Degrees | Series/List # | Z-CARB HPR |
| Shank Type | Round |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.175
