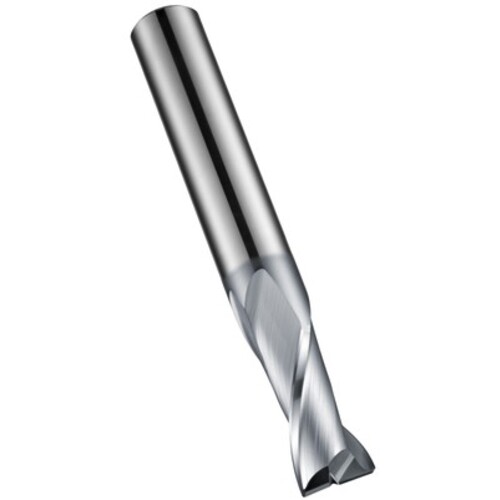

14.00 MM Dormer HM ALCRONA DIN 6535 HA Shank Slot Drill N DIN 6527 L E-code # S812HA14.0
SQ End Mill; 14 mm Dia. × 22 mm LOC × 14 mm Shank Dia. × 83 mm OAL ; 2 FL ; Carbide ; AlCrN ; Series C920
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 14 mm | Applicable Material | | Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Connection Diameter Machine Side (DCONMS) | 14 mm | Application | Shank Cutter Slotting |
| Depth of Cut Maximum (APMX) | 22 mm | Head Length (LH) | 22 mm |
| Overall Length (OAL) | 83 mm | Length Group | Short|Stub |
| Cutting Edge Material | Carbide | Shank Standard | DIN 6527 L |
| Coating | AlCrN | Body Material | HM Material |
| Flute Count (NOF) | 2 | Decimal Equivalent | 0.5512″ |
| Flute Helix Angle (FHA) | 30 Degrees | Series/List # | C920 |
| Shank Type | Round |
Product Features
| Family Description | E-code # S812HA14.0 | Country of Origin | Italy |
Shipping Info
Package Weight
5.705
