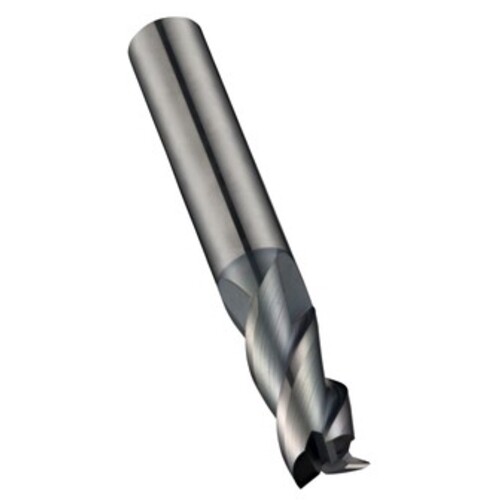

16.00 MM Dormer HM ALCRONA DIN 6535 HA Shank End Mill N DORMER E-code # S71316.0
SQ End Mill; 16 mm Dia. × 32 mm LOC × 16 mm Shank Dia. × 90 mm OAL ; 3 FL ; Carbide ; AlCrN ; Series S611
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 16 mm | Applicable Material | | Steel | Cast Iron | |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Application | Shank Cutter Slotting |
| Depth of Cut Maximum (APMX) | 32 mm | Head Length (LH) | 32 mm |
| Overall Length (OAL) | 90 mm | Length Group | Short|Stub |
| Cutting Edge Material | Carbide | Shank Standard | DIN 6535 HA |
| Coating | AlCrN | Body Material | HM Material |
| Flute Count (NOF) | 3 | Decimal Equivalent | 0.6299″ |
| Flute Helix Angle (FHA) | 40 Degrees | Series/List # | S611 |
| Shank Type | Round |
Product Features
| Family Description | E-code # S71316.0 | Country of Origin | Malaysia |
Shipping Info
Package Weight
0.19
