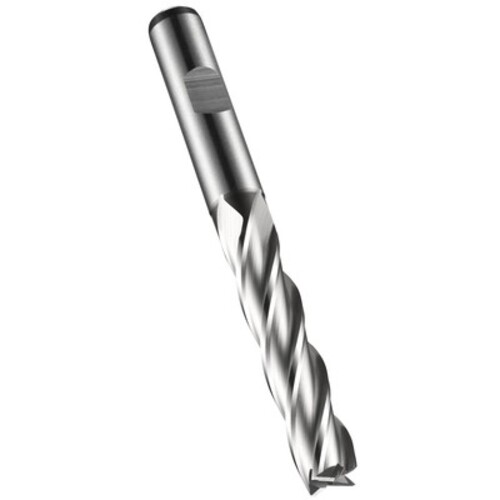

3.50 MM Dormer HSS-E-PM Bright DIN 1835 B Shank End Mill N DIN 844 L E-code # C2733.5
SQ End Mill; 3.5 mm Dia. × 15 mm LOC × 6 mm Shank Dia. × 59 mm OAL ; 4 FL ; HSSCo-PM ; Uncoated ; Series S521
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 3.5 mm | Shank Type | Weldon |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Applicable Material | | Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Depth of Cut Maximum (APMX) | 15 mm | Application | Shank Cutter Finishing |
| Overall Length (OAL) | 59 mm | Head Length (LH) | 15 mm |
| Cutting Edge Material | HSSCo-PM | Length Group | Long |
| Coating | Uncoated | Shank Standard | DIN 1835 B |
| Flute Count (NOF) | 4 | Body Material | HSS-E-PM Material |
| Flute Helix Angle (FHA) | 30 Degrees | Series/List # | S521 |
Product Features
| Family Description | E-code # C2733.5 | Country of Origin | Czech Rep. |
Shipping Info
Package Weight
0.459
