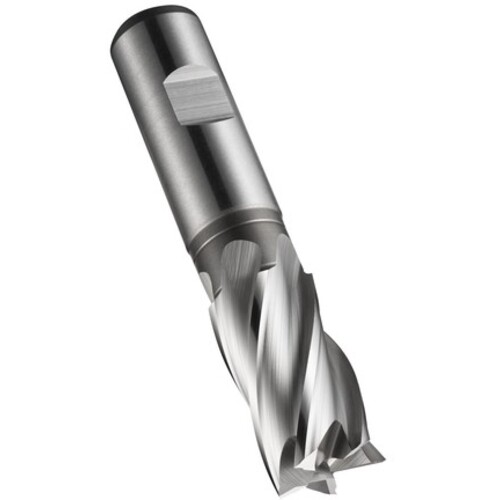

5/8″ Dormer HSS-E-PM Bright DIN 1835 B Shank End Mill N DIN 844 K E-code # C2475/8
SQ End Mill; 5/8″ Dia. × 32 mm LOC × 16 mm Shank Dia. × 92 mm OAL ; 4 FL ; HSSCo-PM ; Uncoated ; Series S814HB
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 5/8″ | Applicable Material | | Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Application | Shank Cutter Finishing |
| Depth of Cut Maximum (APMX) | 32 mm | Head Length (LH) | 32 mm |
| Overall Length (OAL) | 92 mm | Neck Length (LN) | 43.5 mm |
| Cutting Edge Material | HSSCo-PM | Length Group | Short|Stub |
| Coating | Uncoated | Shank Standard | DIN 1835 B |
| Flute Count (NOF) | 4 | Body Material | HSS-E-PM Material |
| Flute Helix Angle (FHA) | 30 Degrees | Decimal Equivalent | 0.625″ |
| Shank Type | Weldon | Series/List # | S814HB |
| Usable Length (LU) | 43.5 mm |
Product Features
| Family Description | E-code # C2475/8 | Country of Origin | Czech Rep. |
Shipping Info
Package Weight
4.41
