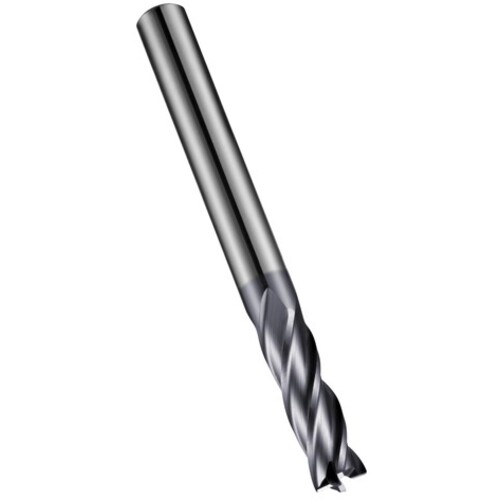

3.00 MM Dormer HM TiAlN DIN 6535 HB Shank End Mill N E-code # S9443.0
SQ End Mill; 3 mm Dia. × 12 mm LOC × 3 mm Shank Dia. × 38 mm OAL ; 4 FL ; Carbide ; AlTiN ; Series C359
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 3 mm | Applicable Material | | Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Connection Diameter Machine Side (DCONMS) | 3 mm | Application | Shank Cutter Finishing |
| Depth of Cut Maximum (APMX) | 12 mm | Head Length (LH) | 12 mm |
| Overall Length (OAL) | 38 mm | Length Group | Medium |
| Cutting Edge Material | Carbide | Shank Standard | DIN 6535 HB |
| Coating | AlTiN | Body Material | HM Material |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.1181″ |
| Flute Helix Angle (FHA) | 30 Degrees | Series/List # | C359 |
| Shank Type | Weldon |
Product Features
| Family Description | E-code # S9443.0 | Country of Origin | Brazil |
Shipping Info
Package Weight
0.224
