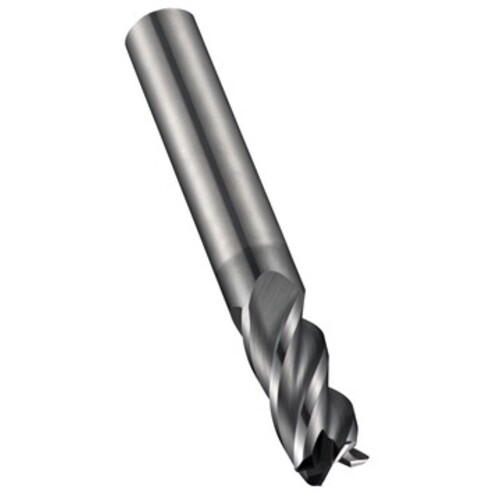

20.00 MM 3.0 MM Dormer HM AlCrN DIN 6535 HA Shank Corner Radius End Mill N DORMER E-code # S76320.0XR3.0
SQ End Mill; 20 mm Dia. × 38 mm LOC × 20 mm Shank Dia. × 100 mm OAL ; 3 mm RE ; 4 FL ; Carbide ; AlCrN ; Series S526
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 20 mm | Applicable Material | | Steel | Cast Iron | |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Application | Shank Cutter Corner Radius |
| Depth of Cut Maximum (APMX) | 38 mm | Corner Radius (RE) | 3 mm |
| Overall Length (OAL) | 100 mm | Head Length (LH) | 38 mm |
| Cutting Edge Material | Carbide | Length Group | Short|Stub |
| Coating | AlCrN | Shank Standard | DIN 6535 HA |
| Flute Count (NOF) | 4 | Body Material | HM Material |
| Flute Helix Angle (FHA) | 40 Degrees | Decimal Equivalent | 0.7874″ |
| Shank Type | Round | Series/List # | S526 |
| End Shape | Corner Radius |
Product Features
| Family Description | E-code # S76320.0XR3.0 | Country of Origin | Malaysia |
Shipping Info
Package Weight
13.475
