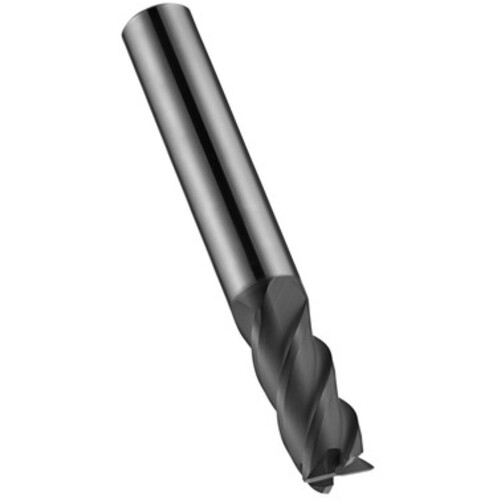

6.00 MM Dormer HM Diamond DIN 6535 HA Shank End Mill N DORMER E-code # S6126.0
SQ End Mill; 6 mm Dia. × 20 mm LOC × 6 mm Shank Dia. × 60 mm OAL ; 4 FL ; Carbide ; DLC ; Series S718
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 6 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Application | Shank Cutter Slotting |
| Depth of Cut Maximum (APMX) | 20 mm | Head Length (LH) | 20 mm |
| Overall Length (OAL) | 60 mm | Length Group | Short|Stub |
| Cutting Edge Material | Carbide | Shank Standard | DIN 6535 HA |
| Coating | DLC | Body Material | HM Material |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.2362″ |
| Flute Helix Angle (FHA) | 40 Degrees | Series/List # | S718 |
Product Features
| Family Description | E-code # S6126.0 | Country of Origin | Malaysia |
Shipping Info
Package Weight
1.05
