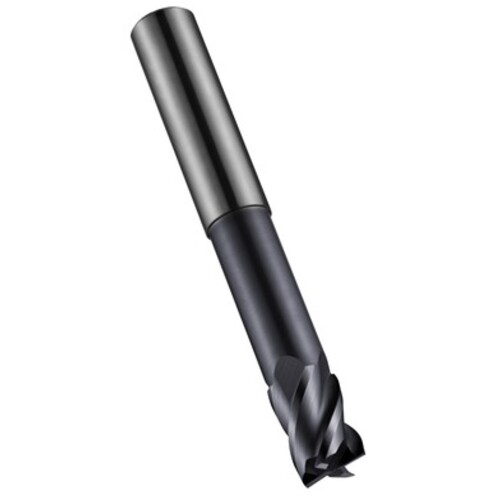

20.00 MM Dormer HM AlTiN DIN 6535 HA Shank End Mill N DORMER E-code # S21920.0
SQ End Mill; 20 mm Dia. × 26 mm LOC × 20 mm Shank Dia. × 125 mm OAL ; 4 FL ; Carbide ; AlTiN ; Series S260
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 20 mm | Applicable Material | | Hard Materials | Super-Alloys / Titanium | |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Application | Shank Cutter Finishing |
| Depth of Cut Maximum (APMX) | 26 mm | Head Length (LH) | 26 mm |
| Overall Length (OAL) | 125 mm | Neck Length (LN) | 85 mm |
| Cutting Edge Material | Carbide | Length Group | Extra Short |
| Coating | AlTiN | Shank Standard | DIN 6535 HA |
| Flute Count (NOF) | 4 | Body Material | HM Material |
| Flute Helix Angle (FHA) | 40 Degrees | Decimal Equivalent | 0.7874″ |
| Shank Type | Round | Series/List # | S260 |
| Usable Length (LU) | 85 mm |
Product Features
| Family Description | E-code # S21920.0 | Country of Origin | Malaysia |
Shipping Info
Package Weight
17.325
