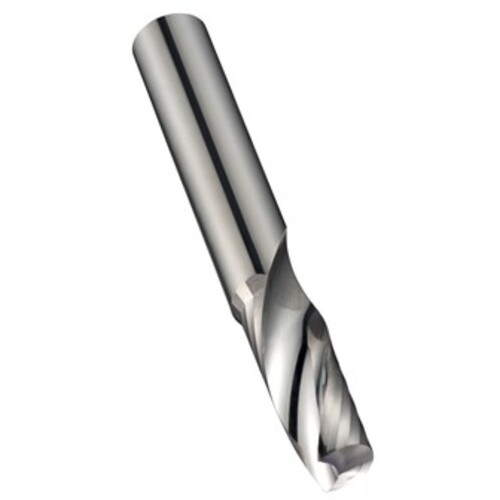

2.00 MM Dormer HM Polished DIN 6535 HA Shank End Mill W DORMER E-code # S6372.0
SQ End Mill; 2 mm Dia. × 10 mm LOC × 2 mm Shank Dia. × 40 mm OAL ; 1 FL ; Carbide ; Polished ; Series S637
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 2 mm | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Connection Diameter Machine Side (DCONMS) | 2 mm | Application | Shank Cutter Slotting |
| Depth of Cut Maximum (APMX) | 10 mm | Head Length (LH) | 10 mm |
| Overall Length (OAL) | 40 mm | Length Group | Medium |
| Cutting Edge Material | Carbide | Shank Standard | DIN 6535 HA |
| Coating | Polished | Body Material | HM Material |
| Flute Count (NOF) | 1 | Decimal Equivalent | 0.0787″ |
| Flute Helix Angle (FHA) | 25 Degrees | Series/List # | S637 |
| Shank Type | Round |
Product Features
| Family Description | E-code # S6372.0 | Country of Origin | Malaysia |
Shipping Info
Package Weight
0.161
