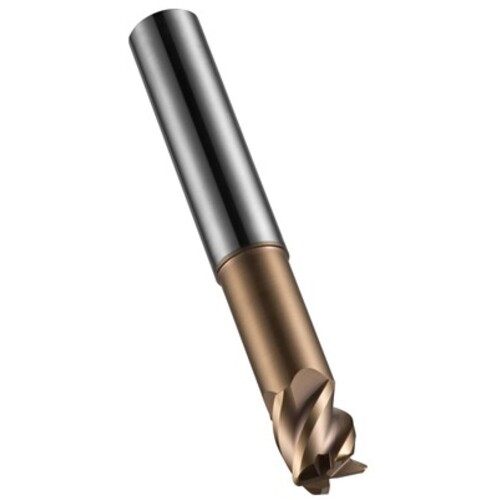

10.00 MM 1.0 MM Dormer HM TiSiN DIN 6535 HA Shank Corner Radius End Mill N DORMER E-code # S52110.0XR1.0
SQ End Mill; 10 mm Dia. × 11 mm LOC × 10 mm Shank Dia. × 70 mm OAL ; 1 mm RE ; 4 FL ; Carbide ; TiSiN ; Series S933
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 10 mm | Applicable Material | | Hard Materials | |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Application | Shank Cutter Corner Radius |
| Depth of Cut Maximum (APMX) | 11 mm | Corner Radius (RE) | 1 mm |
| Overall Length (OAL) | 70 mm | Head Length (LH) | 11 mm |
| Cutting Edge Material | Carbide | Neck Length (LN) | 31 mm |
| Coating | TiSiN | Length Group | Extra Short |
| Flute Count (NOF) | 4 | Shank Standard | DIN 6535 HA |
| Flute Helix Angle (FHA) | 45 Degrees | Body Material | HM Material |
| Shank Type | Round | Decimal Equivalent | 0.3937″ |
| End Shape | Corner Radius | Series/List # | S933 |
| Usable Length (LU) | 31 mm |
Product Features
| Family Description | E-code # S52110.0XR1.0 | Country of Origin | Malaysia |
Shipping Info
Package Weight
2.625
