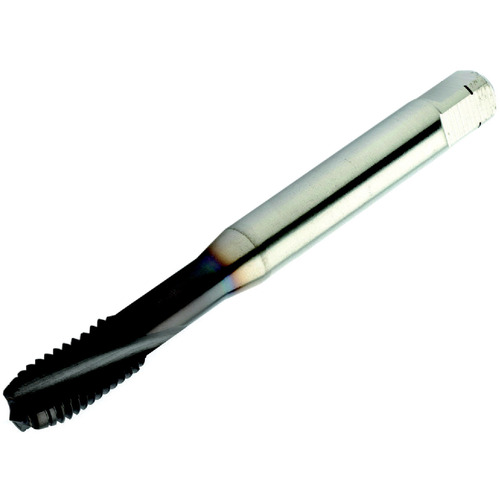

E8843/8 UNC isoP Spl Fl 15d3/8x16
Spiral Flute Tap; 3/8″ - 16 ; 100 mm OAL ; 3 FL ; HSSCo-PM ; 2B
Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | 3/8″ | Applicable Material | | Steel | |
| Threads per Inch (TPI) | 16 | Cutting Edge Material | HSSCo-PM |
| Thread Standard | NC | Thread Tolerance Class (TCTR) | 2B |
| Overall Length (OAL) | 100 mm | Standard | DIN | ANSI |
| Thread Cutting Part Length (THL) | 20 mm | Flute Type | Spiral |
| Usable Length (LU) | 37 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 9.68 mm | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 15 Degrees |
Product Features
| Country of Origin | India |
Shipping Info
Package Weight
0.11
