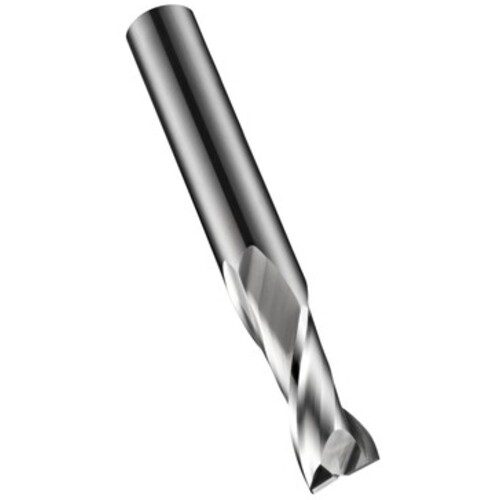

5.00 MM Dormer HM Bright DIN 6535 HA Shank End Mill N E-code # S9025.0
SQ End Mill; 5 mm Dia. × 16 mm LOC × 5 mm Shank Dia. × 50 mm OAL ; 2 FL ; Carbide ; Bright ; Series S902
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 5 mm | Applicable Material | | Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Connection Diameter Machine Side (DCONMS) | 5 mm | Application | Shank Cutter Slotting |
| Depth of Cut Maximum (APMX) | 16 mm | Head Length (LH) | 16 mm |
| Overall Length (OAL) | 50 mm | Length Group | Medium |
| Cutting Edge Material | Carbide | Shank Standard | DIN 6535 HA |
| Coating | Bright | Body Material | HM Material |
| Flute Count (NOF) | 2 | Decimal Equivalent | 0.1969″ |
| Flute Helix Angle (FHA) | 30 Degrees | Series/List # | S902 |
| Shank Type | Round |
Product Features
| Family Description | E-code # S9025.0 | Country of Origin | Brazil |
Shipping Info
Package Weight
0.627
