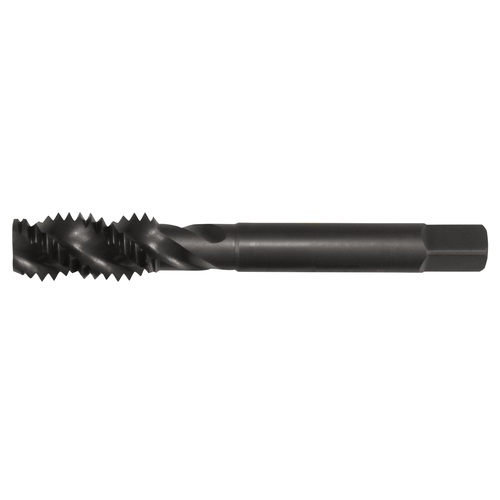

1/2-13 UNC 3 Flute H3 HSS CNC Heavy Duty Bottoming Chamfer Spiral Flute Tap- Steam Oxide
Spiral Flute Tap; 1/2″ - 13 ; 3.38″ OAL ; 3 FL ; HSS ; Black Oxide ; H3 | 2B ; Series 1096
| Thread Diameter Size (TDZ) | 1/2″ | Tool Type | Machine Tap |
| Threads per Inch (TPI) | 13 | Chamfer | Bottoming |
| Thread Standard | NC | Coating | Black Oxide |
| Overall Length (OAL) | 3.38″ | Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 0.94″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 0.367″ | Style | Bottoming |
| Flute Count (NOF) | 3 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 45 Degrees | Length Group | 2.5D |
| Applicable Material | | Steel | Stainless Steel | | Measurement Type | Inch |
| Cutting Edge Material | HSS | Series/List # | 1096 |
| Thread Tolerance Class (TCTR) | H3 | 2B |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
4.00000
Package Width
.67300
Package Height
.64500
Package Weight
.108
