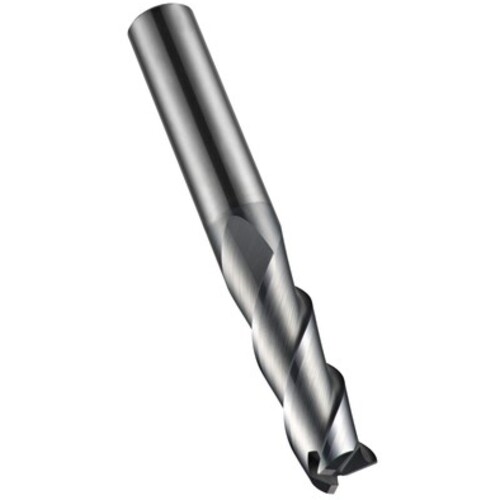

12.00 MM Dormer HM AlCrN DIN 6535 HA Shank End Mill N DORMER E-code # S71412.0
SQ End Mill; 12 mm Dia. × 50 mm LOC × 12 mm Shank Dia. × 100 mm OAL ; 3 FL ; Carbide ; AlCrN ; Series S227
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 12 mm | Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Application | Shank Cutter Slotting |
| Depth of Cut Maximum (APMX) | 50 mm | Head Length (LH) | 50 mm |
| Overall Length (OAL) | 100 mm | Length Group | Long |
| Cutting Edge Material | Carbide | Shank Standard | DIN 6535 HA |
| Coating | AlCrN | Body Material | HM Material |
| Flute Count (NOF) | 3 | Decimal Equivalent | 0.4724″ |
| Flute Helix Angle (FHA) | 40 Degrees | Series/List # | S227 |
| Shank Type | Round |
Product Features
| Family Description | E-code # S71412.0 | Country of Origin | Malaysia |
Shipping Info
Package Weight
4.9
