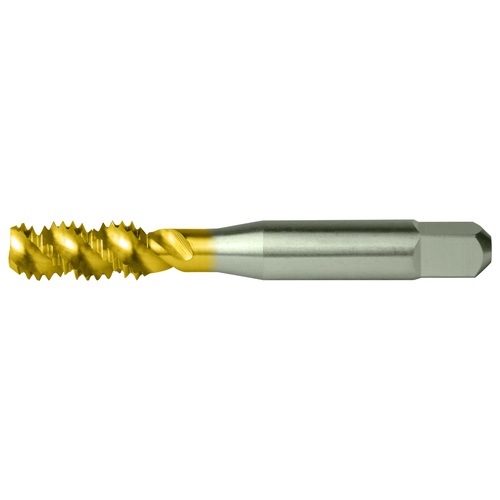

#4-40 UNC 2 Flute H2 HSS High Helix Bottoming Chamfer General Purpose High-Spiral Tap- TiN
Spiral Flute Tap; 0.112″ - 40 ; 1.88″ OAL ; 2 FL ; HSS ; TiN ; H2 | 2B ; Series 1094-TN

| Thread Diameter Size (TDZ) | 0.112″ | Tool Type | Machine Tap |
| Threads per Inch (TPI) | 40 | Chamfer | Bottoming |
| Thread Standard | NC | Coating | TiN |
| Overall Length (OAL) | 1.88″ | Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 0.31″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 0.141″ | Style | Bottoming |
| Flute Count (NOF) | 2 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 52 Degrees | Length Group | 2D |
| Applicable Material | | Steel | Stainless Steel | | Measurement Type | Inch |
| Cutting Edge Material | HSS | Series/List # | 1094-TN |
| Thread Tolerance Class (TCTR) | H2 | 2B |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.007
