1/4-20 UNC 3 Flute H5 HSS (M4) CNC For Soft Metals Spiral Flute for Steel and Stainless Steel- Steam Oxide

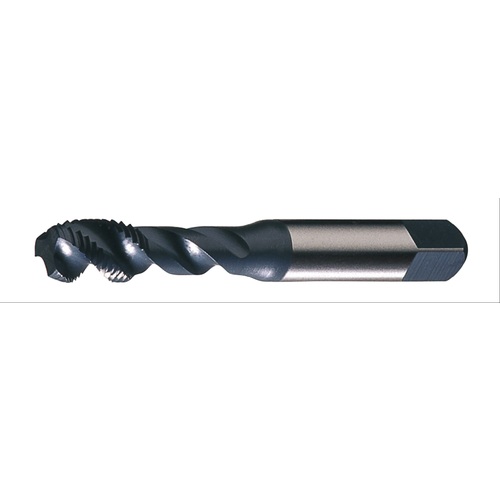

Spiral Flute Tap; 1/4″ - 20 ; 2-1/2″ OAL ; 3 FL ; HSSE ; Black Oxide ; H5 | 2B | 3B ; Series B101
| Thread Diameter Size (TDZ) | 1/4″ | Tool Type | Machine Tap |
| Threads per Inch (TPI) | 20 | Chamfer | Semi-Bottoming |
| Thread Standard | NC | Coating | Black Oxide |
| Overall Length (OAL) | 2-1/2″ | Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 5/8″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 0.255″ | Style | Semi-Bottoming |
| Flute Count (NOF) | 3 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 42 Degrees | Length Group | 2.5D |
| Applicable Material | | Steel | Stainless Steel | | Measurement Type | Inch |
| Cutting Edge Material | HSSE | Series/List # | B101 |
| Thread Tolerance Class (TCTR) | H5 | 2B | 3B |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.027
