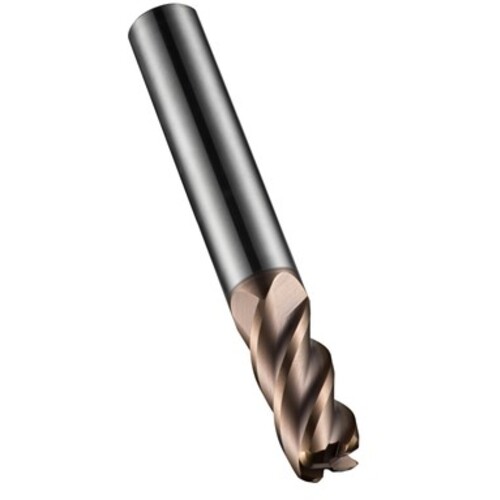

2.00 MM 0.2 MM Dormer HM TiSiN DIN 6535 HA Shank Corner Radius End Mill N DORMER E-code # S5232.0XR0.2
SQ End Mill; 2 mm Dia. × 6.5 mm LOC × 6 mm Shank Dia. × 50 mm OAL ; 0.2 mm RE ; 4 FL ; Carbide ; TiSiN ; Series S803HA
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 2 mm | Applicable Material | | Hard Materials | |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Application | Shank Cutter Corner Radius |
| Depth of Cut Maximum (APMX) | 6.5 mm | Corner Radius (RE) | 0.2 mm |
| Overall Length (OAL) | 50 mm | Head Length (LH) | 6.5 mm |
| Cutting Edge Material | Carbide | Length Group | Short|Stub |
| Coating | TiSiN | Shank Standard | DIN 6535 HA |
| Flute Count (NOF) | 4 | Body Material | HM Material |
| Flute Helix Angle (FHA) | 40 Degrees | Decimal Equivalent | 0.0787″ |
| Shank Type | Round | Series/List # | S803HA |
| End Shape | Corner Radius |
Product Features
| Family Description | E-code # S5232.0XR0.2 | Country of Origin | Malaysia |
Shipping Info
Package Weight
0.774
