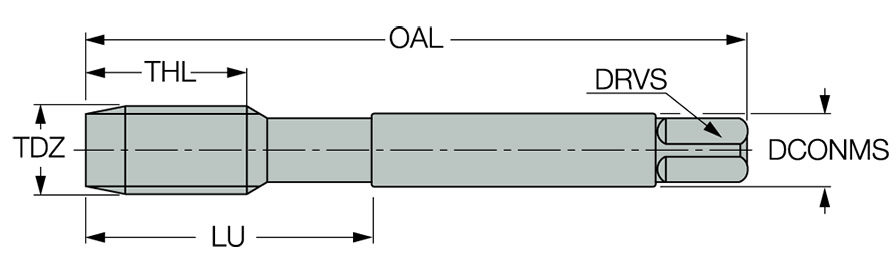

TPS M-14X2.0-H HEST
| Thread Diameter Size (TDZ) | M14 | Style | Modified Bottoming |
| Thread Pitch (TP) | 2 mm | fmax | 3 |
| Thread Standard | THFT | | Measurement Type | Inch |
| Overall Length (OAL) | 4.331″ | Grade | HEST |
| Thread Cutting Part Length (THL) | 0.787″ | d max | M14″ |
| Connection Diameter Machine Side (DCONMS) | 0.433″ | ToolTypeName | Machine Blind Hole Taps |
| Flute Count (NOF) | 3 | L125 | 4.331″ |
| Flute Helix Angle (FHA) | 40 Degrees | Thread Form Type (THFT) | M60 |
| Cutting Edge Material | HSS | Series/List # | 299 |
| Thread Tolerance Class (TCTR) | D6 | Application | | Deep Hole with Short Thread | Taps for Deep Blind Hole | Taps for Short Blind Hole | |
| Tool Type | Machine Blind Hole Taps | Body Material | HSS |
| Chamfer | 2.5P-3P | Drive Size (DRVS) | 0.354″ |
| Coating | Steam tempered | Thread Size | M14 × 2 |
| Flute Type | Spiral |
Product Features
| Family Description | HSS right-hand 40° spiral flute machine taps - ISO metric coarse threads, according to DIN 13, for hardened steel and high temperature alloys. | Country of Origin | Israel |
Shipping Info
Package Weight
0.181
