TPS M-18X2.5-M-B HE
DIN 13 HSS spiral flute machine taps - metric coarse threads, for a wide range of materials.

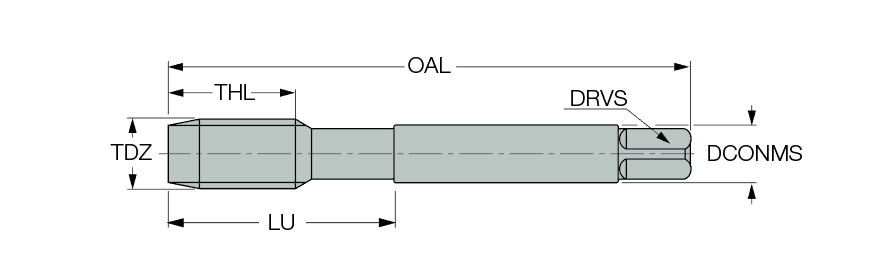

| Thread Diameter Size (TDZ) | M18 | Style | DIN 376 |
| Thread Pitch (TP) | 2.5 mm | fmax | 4 |
| Thread Standard | THFT | | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 4.921″ | Measurement Type | Inch |
| Thread Cutting Part Length (THL) | 0.984″ | Grade | HE |
| Connection Diameter Machine Side (DCONMS) | 0.551″ | d max | M18″ |
| Flute Count (NOF) | 4 | ToolTypeName | Machine Blind Hole Taps |
| Flute Helix Angle (FHA) | 40 Degrees | L125 | 4.921″ |
| Cutting Edge Material | HSS | Thread Form Type (THFT) | M60 |
| Thread Tolerance Class (TCTR) | D6 | Series/List # | 299 |
| Standard | DIN 376 | Application | | Deep Hole with Short Thread | Taps for Deep Blind Hole | Taps for Short Blind Hole | |
| Tool Type | Machine Blind Hole Taps | Body Material | HSS |
| Chamfer | 2.5P-3P | Drive Size (DRVS) | 0.433″ |
| Coating | Uncoated | Thread Size | M18 × 2.5 |
| Flute Type | Spiral |
Product Features
| Family Description | DIN 13 HSS spiral flute machine taps - metric coarse threads, for a wide range of materials. | Country of Origin | Korea |
Shipping Info
Package Weight
0.298
