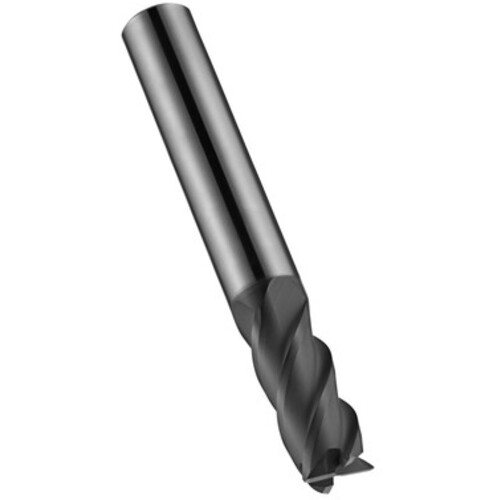

2.50 MM Dormer HM Diamond DIN 6535 HA Shank End Mill N DORMER E-code # S6122.5
SQ End Mill; 2.5 mm Dia. × 6.5 mm LOC × 3 mm Shank Dia. × 40 mm OAL ; 4 FL ; Carbide ; DLC ; Series C333
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 2.5 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 3 mm | Application | Shank Cutter Slotting |
| Depth of Cut Maximum (APMX) | 6.5 mm | Head Length (LH) | 6.5 mm |
| Overall Length (OAL) | 40 mm | Length Group | Short|Stub |
| Cutting Edge Material | Carbide | Shank Standard | DIN 6535 HA |
| Coating | DLC | Body Material | HM Material |
| Flute Count (NOF) | 4 | Series/List # | C333 |
| Flute Helix Angle (FHA) | 40 Degrees |
Product Features
| Family Description | E-code # S6122.5 | Country of Origin | Malaysia |
Shipping Info
Package Weight
0.175
