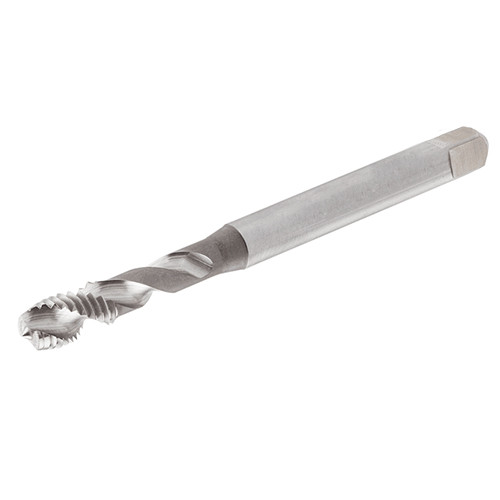

TPS UNF-#10-32-M HE
Spiral Flute Tap; #10 -32 Threads/" × 2.756″ OAL ; 3 FL ; HSS ; Uncoated ; THFT |

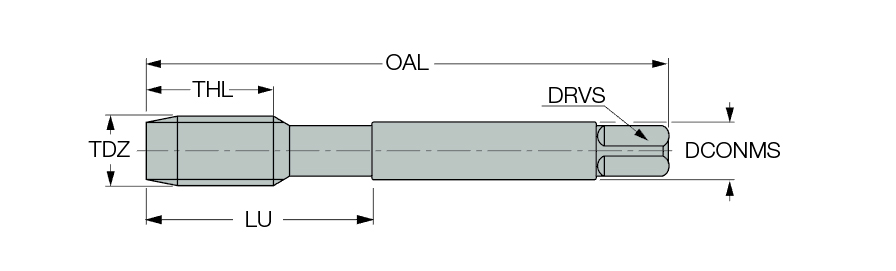

| Thread Diameter Size (TDZ) | #10 | Flute Type | Spiral |
| Threads per Inch (TPI) | 32 Threads/" | Style | DIN 371 |
| Thread Standard | THFT | | fmax | 3 |
| Overall Length (OAL) | 2.756″ | Measurement Type | Inch |
| Thread Cutting Part Length (THL) | 0.394″ | Grade | HE |
| Usable Length (LU) | 0.98″ | d max | #10″ |
| Connection Diameter Machine Side (DCONMS) | 0.236″ | ToolTypeName | Machine Blind Hole Taps |
| Flute Count (NOF) | 3 | L125 | 2.756″ |
| Flute Helix Angle (FHA) | 40 Degrees | Thread Form Type (THFT) | UN60 |
| Cutting Edge Material | HSS | Series/List # | 299 |
| Thread Tolerance Class (TCTR) | D6 | Application | | Deep Hole with Short Thread | Taps for Deep Blind Hole | Taps for Short Blind Hole | |
| Standard | DIN 371 | Body Material | HSS |
| Tool Type | Machine Blind Hole Taps | Drive Size (DRVS) | 0.193″ |
| Chamfer | 2.5P-3P | Thread Size | 10 - 32 |
| Coating | Uncoated |
Product Features
| Family Description | HSS spiral flute machine taps - unified fine threads, for a wide range of materials. | Country of Origin | Korea |
Shipping Info
Package Weight
0.029
