TPS M-8X1.25-N HEST

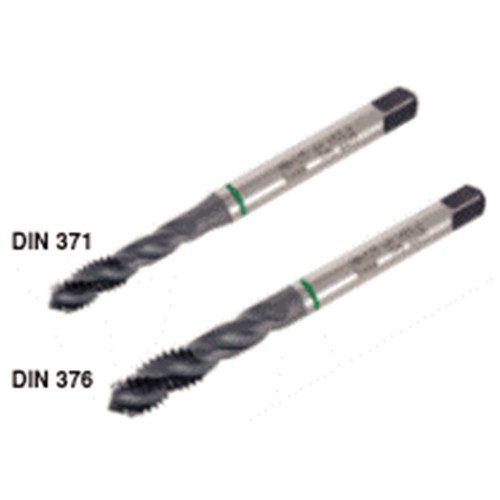

Spiral Flute Tap; M8 × 1.25 mm ; 3.543″ OAL ; 3 FL ; HSS ; Steam tempered ; D6 ; Series 299
| Thread Diameter Size (TDZ) | M8 | Flute Type | Spiral |
| Thread Pitch (TP) | 1.25 mm | Style | DIN 371 |
| Thread Standard | THFT | | fmax | 0 |

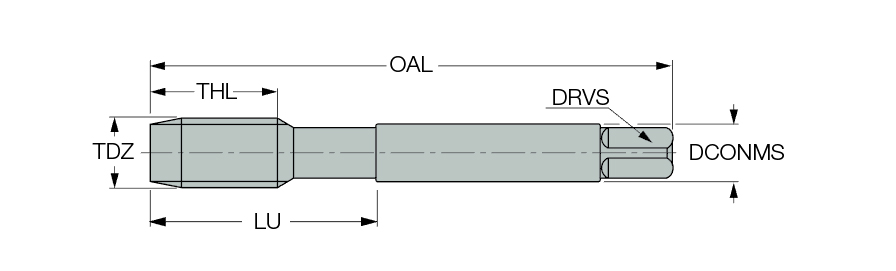

| Overall Length (OAL) | 3.543″ | Measurement Type | Inch |
| Thread Cutting Part Length (THL) | 0.512″ | Grade | HEST |
| Usable Length (LU) | 1.38″ | d max | M8″ |
| Connection Diameter Machine Side (DCONMS) | 0.315″ | ToolTypeName | Machine Blind Hole Taps |
| Flute Count (NOF) | 3 | L125 | 3.543″ |
| Flute Helix Angle (FHA) | 40 Degrees | Thread Form Type (THFT) | M60 |
| Cutting Edge Material | HSS | Series/List # | 299 |
| Thread Tolerance Class (TCTR) | D6 | Application | | Deep Hole with Short Thread | Taps for Deep Blind Hole | Taps for Short Blind Hole | |
| Standard | DIN 371 | Body Material | HSS |
| Tool Type | Machine Blind Hole Taps | Drive Size (DRVS) | 0.244″ |
| Chamfer | 2.5P-3P | Thread Size | M8 × 1.25 |
| Coating | Steam tempered |
Product Features
| Family Description | HSS right-hand 40° spiral flute machine taps - ISO metric coarse threads, according to DIN 13, for low alloyed steel. | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.068
