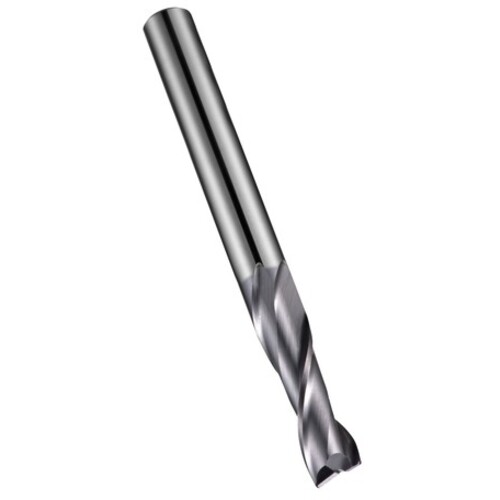

4.00 MM Dormer HM TiAlN DIN 6535 HB Shank End Mill N E-code # S9224.0
SQ End Mill; 4 mm Dia. × 14 mm LOC × 4 mm Shank Dia. × 50 mm OAL ; 2 FL ; Carbide ; AlTiN ; Series S804HB
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 4 mm | Applicable Material | | Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Application | Shank Cutter Slotting |
| Depth of Cut Maximum (APMX) | 14 mm | Head Length (LH) | 14 mm |
| Overall Length (OAL) | 50 mm | Length Group | Medium |
| Cutting Edge Material | Carbide | Shank Standard | DIN 6535 HB |
| Coating | AlTiN | Body Material | HM Material |
| Flute Count (NOF) | 2 | Decimal Equivalent | 0.1575″ |
| Flute Helix Angle (FHA) | 30 Degrees | Series/List # | S804HB |
| Shank Type | Weldon |
Product Features
| Family Description | E-code # S9224.0 | Country of Origin | Brazil |
Shipping Info
Package Weight
0.371
